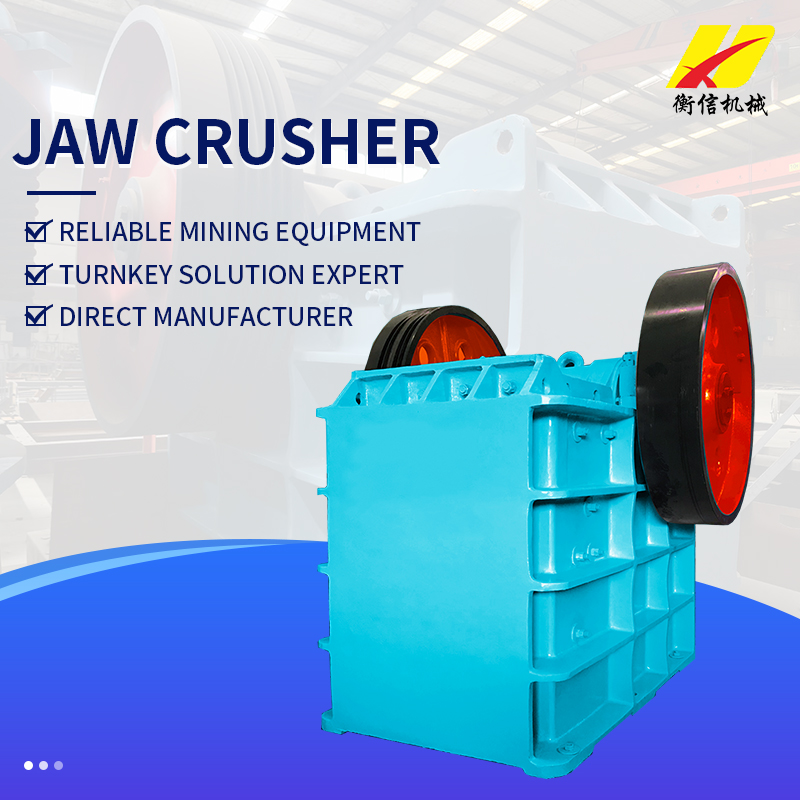

Rock Crusher (Jaw Type) / Primary Crusher / Stone Jaw Crusher / Coarse Crusher / Crushing Jaw Machine
HXPJ Jaw Crusher
Engineered for reliability and performance, the HXPJ Series Jaw Crusher delivers robust primary, secondary, and tertiary crushing for ores and rocks with compressive strengths from 147 MPa to 320 MPa, making it one of the most widely used crushers in mining, construction, aggregate, chemicals, power generation and transportation industries.
Your Benefits
High-quality steel casting design delivering excellent compressive strength, stable performance
Optimized cavity ensuring higher throughput, up to 15% to 20%
Lower power consumption, energy efficient
Enhanced bearing-lubrication system enabling cooling operation and extended lifetime
Simple structure, easy maintenance with safety
Technical Information
Model | Max. Feeding Size (mm) | Side Setting Range (mm) | Capacity (t/h) | Operating Speed (r/min) | Motor Power (kw) | Weight (kg) |
HXPJ900 | 500 | 60-160 | 100-220 | 275 | 75 | 12200 |
HXPJ1100 | 630 | 100-200 | 200-350 | 275 | 110 | 27200 |
HXPJ1200 | 750 | 100-200 | 400-630 | 250 | 160 | 38500 |
HXPJ1600 | 1100 | 180-330 | 950-1500 | 210 | 355 | 104600 |
HXPJ1800 | 1200 | 180-350 | 1050-1800 | 205 | 400 | 127600 |
Note: The table displays only a partial list of our product models. For additional models or customized solutions, please contact us directly.
HXCJ Jaw Crusher
HXCJ series jaw crushers are engineered for the toughest feed materials in the primary crushing stage.
Your Benefits
Modular and non-welded frame construction
Enabling the HXCJ series jaw crushers be swiftly disassembled and transported easily and cost effectively for any demanding primary crushing applications.
Excellent high capacity
With an optimized crushing chamber, adequate crusher discharge area, the HXCJ series delivers higher throughput compared to conventional jaw crushers.
Modular design enables easy installation
The HXCJ series jaw crushers are modular for quick, easy installation in underground mining applications in tight spaces. The design also provides excellent fatigue life and strength.
Built to last
Designed with high-grade eccentric shaft, high quality heavy-duty rolling bearings, optimized swing jaw, ensures the reliability and strength. Perfect sealing and lubrication system enables maximum uptime and long-term reliability.
Technical Information
Model | Feed Opening (mm) | Estimated maximum feed size (mm) | Speed (r/min) | Motor Power (kw) | Weight (kw) |
HXCJ106 | 1060x700 | 620 | 280 | 110 | 17300 |
HXCJ116 | 1150x760 | 630 | 260 | 132 | 22300 |
HXCJ125 | 1250x950 | 765 | 220 | 160 | 41000 |
HXCJ150 | 1400x1200 | 1050 | 220 | 220 | / |
HXCJ160 | 1600x1300 | 1100 | 220 | 315 | 88500 |
Note: The table displays only a partial list of our product models. For additional models or customized solutions, please contact us directly.
Crusher throughput capacity
Model | HXCJ106 | HXCJ116 | HXCJ125 | HXCJ150 | HXCJ160 |
Closed side setting | t/h | t/h | t/h | t/h | t/h |
70 | 155-200 | 170-220 | |||
80 | 175-230 | 190--250 | |||
90 | 200-260 | 215-280 | |||
100 | 220-290 | 240-310 | 291-381 | ||
125 | 280-365 | 295-385 | 351-456 | 420-570 | |
150 | 355-435 | 350-455 | 411-536 | 530-710 | 600-820 |
175 | 390-510 | 405-525 | 472-612 | 630-850 | 730-980 |
200 | 445-580 | 460-600 | 532-692 | 739-1000 | 850-1150 |
225 | 591-771 | 860-1160 | 980-1350 | ||
250 | 652-847 | 980-1320 | 1120-1520 | ||
275 | 1260-1710 | ||||
300 | 1400-1900 |
